View Larger Image

Catalog Number: TV20111
Finish: CLEAR

  • CW-75 AAMA Rated with Reinforced Corners with an Aluminum Corner Key

  • .062" Nominal Wall Thickness

  • Thermally Broken System for Exceptional Thermal Performance
  • Stainless Steel 4-Bar Hinges and Die Cast Cam Locking Handles

  • All window units are built for dry glaze with tape at the outside and E.P.D.M. elastomeric wedge at the inside for 1" (not included). Vent construction is accomplished with tubular members, mitered and reinforced with an extruded aluminum corner key, and hydraulically crimped. Operating hardware includes: Standard 4-Bar Stainless Steel Hinges and Cam Locking Handles.

    CRL-U.S. Aluminum Clear Anodized 7200 Series Project-Out Bottom Vent Window


    Other Products/Finishes:

    TV20111 CRL-U.S. Aluminum Clear Anodized 7200 Series Project-Out Bottom Vent Window
    TV20122 CRL-U.S. Aluminum Class I Bronze Anodized 7200 Series Project-Out Bottom Vent Window
    TV20152 CRL-U.S. Aluminum White KYNAR® Paint 7200 Series Project-Out Bottom Vent Window
    TV20171 CRL-U.S. Aluminum Custom KYNAR® Paint 7200 Series Project-Out Bottom Vent Window

    Catalog Number:TV20111
    Also Available in These Catalogs:
    USAL14 U.S. Aluminum Architectural Design Manual, PAGE 01D1
    USAL15 U.S. Aluminum Curtain Wall Catalog, PAGE 01L1
    Size:Assemble to Order (ATO)
    Ship Via:No UPS - Common Carrier Only

    Optional Hardware Includes: Roto operator, limit device, friction adjuster, lift handle lock, screens, and wicket box Optional Extrusions Include: Head and jamb channels, mulling bars, subsills, corners, nail fin adapters, and extruded sill flashing

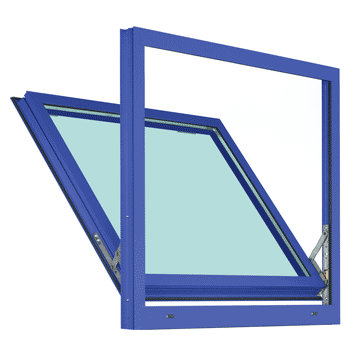

    Project-Out Bottom Vent (Awning)
    Standard 4-bar Stainless Steel hinges will have a limit based on the hinge length and the weight of the sash. No 90 degree 4-bar hinges available for Project-out vents 90 degree 4-bar Stainless Steel hinges are available for casement windows requiring Egress.
